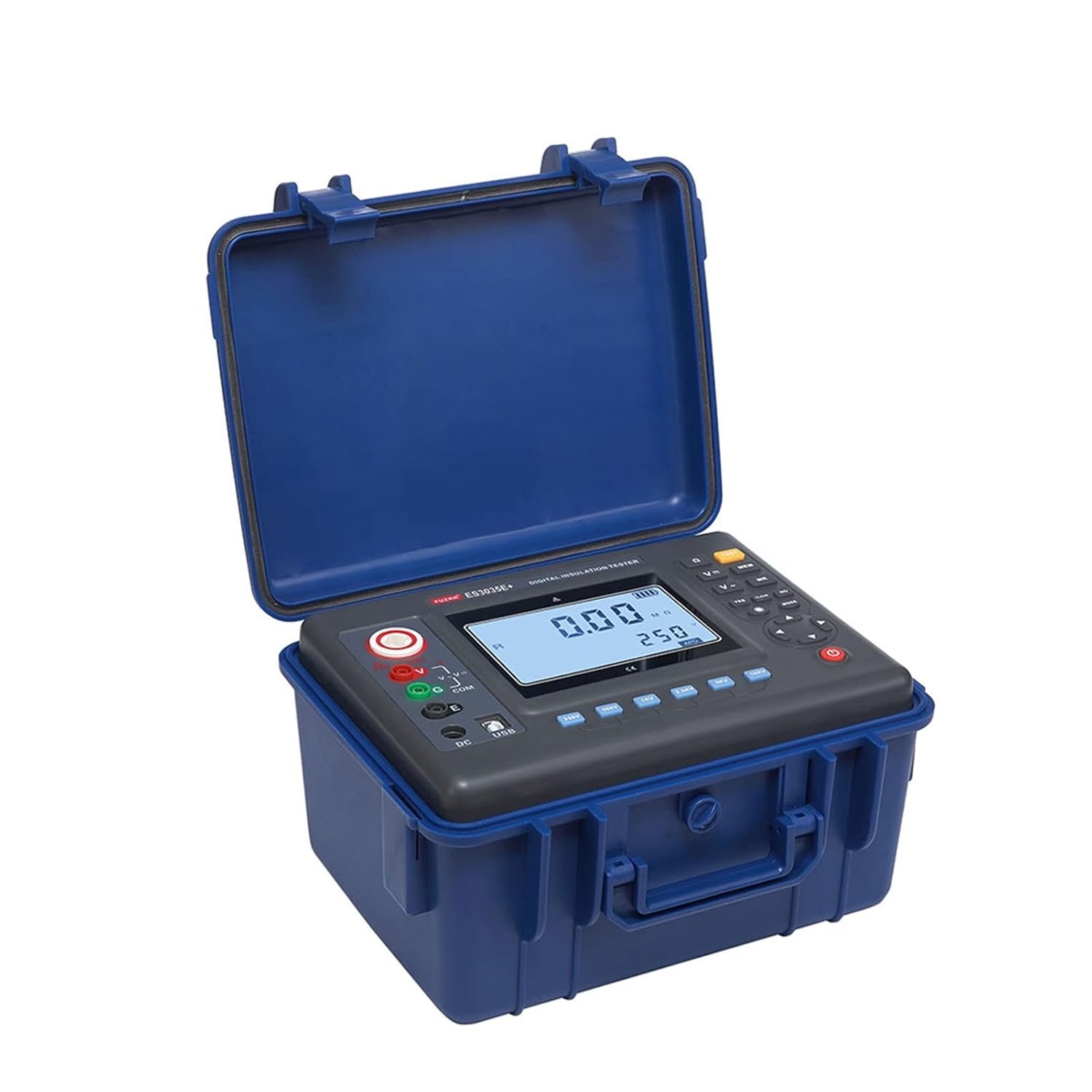

Capacitance Meters, Digital Insulation Resistance Meter High Voltage Insulation Resistance Tester Megohmmeter 5kV ES3035+

Specification:Function：Insulation resistance test, voltage testBase conditions：23°C±5°C，below 75%rhRated voltage(V)：100；250；500；1000；2500；5000V accuracy±3%rdg±5dgtTest Voltage(V)：rated voltage×（1±10%）Insulation Resistance Range（GΩ）：0.01MΩ～2000GΩ accuracy±3%rdg±5dgtInsulation Resistance Resolution：0.01MΩDC Voltage Range：0～1000VDC Voltage resolution：0.1VAC Voltage Range：0～750VAC Voltage resolution：0.1VOutput short-circuit Current：≥5mA(5000V)Absorption Ratio and Polarization Index Measurement：HavePower Supply：12V rechargeable batteryBacklight：Controllable gray screen backlight, suitable for use in dim placesDispaly mode：4-bit large LCD display, gray screen backlightLCD display size：108mm×65mmInstrument size:L/W/H：277.2mm×227.5mm×153mmTest Line:High voltage test line red 1 meter, black 1 meter, green line 1 meterData Storage 500 groups, "FULL" symbol indicates that storage is full USB interface:With USB interface, software monitoring, storage data can be uploaded to the computer, save the printCommunication Line:USB communication line 1PCData Review:Data review function: "MR" symbol displayOverflow Display:Exceed measurement range overflow function: “OL ” symbol displayAlarm Function:Alarm when the measured value exceeds the alarm setting valuePower Consumption:Standby: 30mA Max(backlight off)Turn on backlight: 42mA MaxMeasure:200mA Max(backlight off)Instrument weight:2720g(including battery)Battery voltage:When the battery voltage is low, low battery symbol “ ”will displayAutomatic shut-down automatic shutdown after 15 minutes bootInsulation Resistance ≥50MΩ(between Measuring line and housing)voltage withstand:AC3kV/50Hz 1minWorking Temperature and Humidity:－10℃～+50℃＜85%RHStorage Temperature and Humidity:－15℃～+55℃＜90%RHSuitable for Safety Regulations IEC61010-1、IEC1010-2-31、IEC61557-1,5、IEC60529(IP54) pollution grade 2、CAT Ⅲ 300VSpecification:Instrument:1PCHigh pressure rod:1PC redHigh voltage test line:2PCS（black,green each 1）Monitoring Software CD:1PCUSB communication line:1PCcharger:1PCManual, certificate:1SETInstrument box:1PC

• -ES3035+digital insulation resistance meter, also known as megohmmeter, high-voltage insulation resistance tester, used for insulation resistance testing.
• -The instrument has the functions of large LCD screen gray backlight display, data storage, data viewing, alarm, automatic discharge, charging, automatic shutdown and so on.
• -ES3035+ digital insulation resistance meter also has a shock-proof, dust-proof and moisture-proof structure, which is suitable for harsh working environments.
• -It is a commonly used and indispensable instrument for telecommunications, electric power, meteorology, computer rooms, oil fields, electromechanical installation and maintenance, and industrial enterprises that use electric power as industrial power or energy.
• -Suitable for measuring the resistance value of various insulating materials and the insulation resistance of transformers, motors, cables, and electrical equipment.
